Bronze Exhaust Valve Guide - Standard (.5650in.)

Click to zoom

Bronze Exhaust Valve Guide - Standard (.5650in.)

$30.72

✗ Out of Stock

Quantity:

30-day return policy
1-year warranty
24/7 customer support

Bronze Exhaust Valve Guide - Standard (.5650in.)

SKU: 20-2330

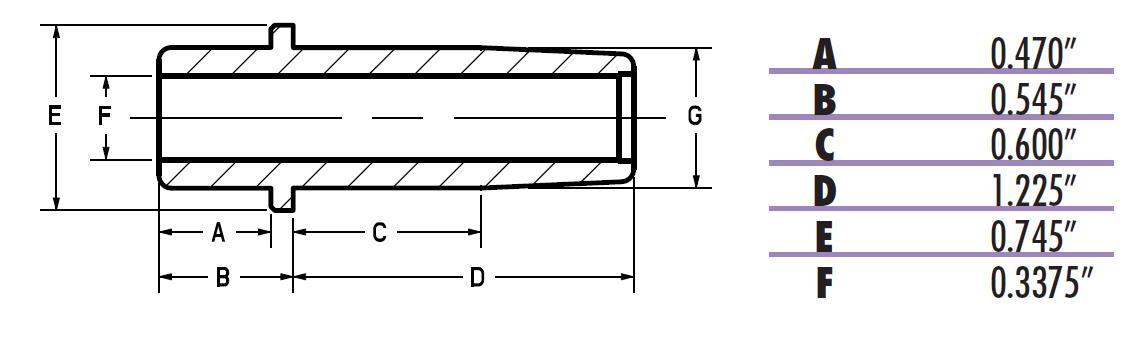

We choose to use C630 nickel bronze as a material to make valve guides because of its ideal characteristics for the application.The 4-5 percent nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity.Guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, promoting high performance and endurance Quantity: Pkg. of 1.Material: C630 Bronze.Type: Exhaust.Outside Dia.: (G): 0.5650in. / Std..A: 0.470in..B: 0.545in..C: 0.600in..D: 1.225in..E: 0.745in..F: 0.3375in..Sea: Seal not required. However, KPM Exhaust Seal #20-20622 may be used if a seal is desired.

Weight	1 kg
SKU	20-2330
Name	Bronze Exhaust Valve Guide - Standard (.5650in.)
Description	Bronze Exhaust Valve Guide - Standard (.5650in.) SKU: 20-2330 We choose to use C630 nickel bronze as a material to make valve guides because of its ideal characteristics for the application.The 4-5 percent nickel content provides superior resistance to wear, and the approximately 80 percent copper content delivers outstanding heat conductivity.Guide profiles are designed to have minimal effect on the airstream while maintaining critical cross sectional thickness in high temperature areas, promoting high performance and endurance Quantity: Pkg. of 1.Material: C630 Bronze.Type: Exhaust.Outside Dia.: (G): 0.5650in. / Std..A: 0.470in..B: 0.545in..C: 0.600in..D: 1.225in..E: 0.745in..F: 0.3375in..Sea: Seal not required. However, KPM Exhaust Seal #20-20622 may be used if a seal is desired.
