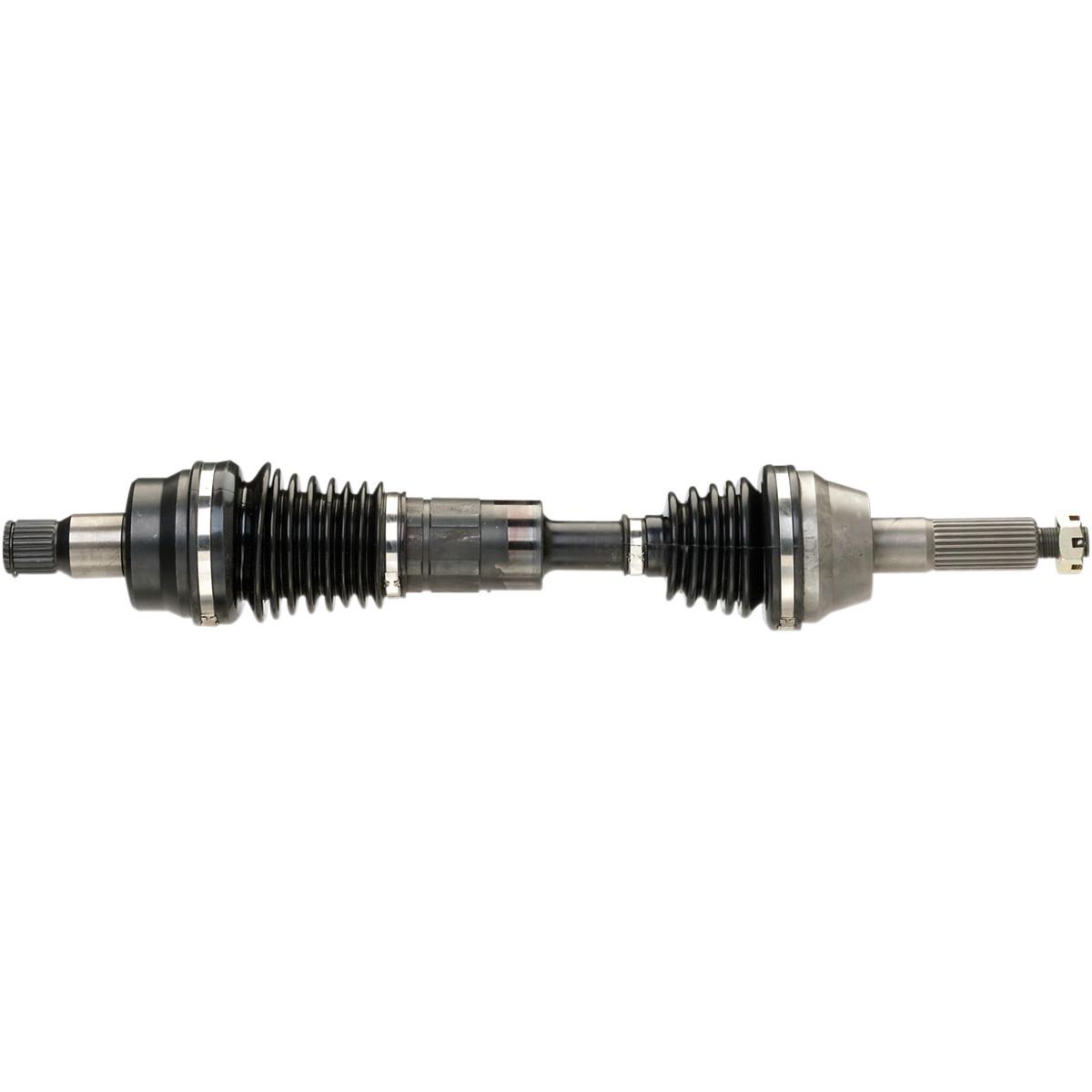

Heavy-Duty Axle with Voodoo Technology

Heavy-Duty Axle with Voodoo Technology

SKU: 21035VD

If your ATV or UTV has a lift kit or extended A-arms and requires long travel suspension, you need Moose Heavy Duty Axles With Voodoo Axle Technology.Our revolutionary design provides ultra-high strength and the ability to operate at angles others cant.To accommodate suspension travel the axles utilize a slip spline that allows the axle to compress and extend 2in..This helps to prevent disengagement of the inner CV joint from the transaxle when the suspension is at full droop.Telescoping axle bars are carried on linear motion ball bearings for smooth action that wont bind under load.Typical axles use inboard CV joints that must both operate at an angle, and allow suspension travel. This dual purpose design limits articulation angle to about 25deg., while travel is limited to 1.25in. - 1.5in., which is inadequate for ATVs and UTVs with lift kits, or long-travel suspension.These axles utilize fixed Rzeppa inner CV joints that allow 45deg. of articulation, while a slip spline in the axle shaft provides 2in. of travel
